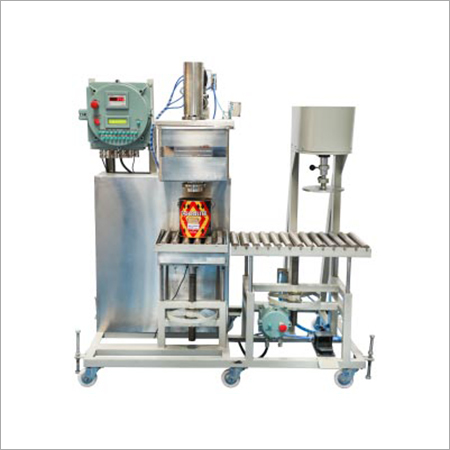

Single Drum Filling Machine

Get a Price/Quote

MOQ : 1 Piece

Single Drum Filling Machine Specification

Product Type
Single Drum Filling Machine

Material
Stainless Steel 304/316

Application
Filling of liquid products into drums

Packaging Material
Any standard drum

Computerized
Yes

Automatic Grade
Semi-Automatic / Automatic

Control System
PLC Control

Drive Type
Electric

Voltage
220-240 V, 50/60 Hz

Weight (kg)
Approx. 350 kg

Dimension (L*W*H)
1200 mm x 1000 mm x 1800 mm

Capacity
Up to 200 drums per day

Feature
High precision filling, Safety interlock, Easy operation

Color
Metallic (Silver/Grey)

Drum Size Compatibility
Standard 200-liter drums and custom sizes

Nozzle Type
Anti-drip, Adjustable height

Operating Temperature
5°C to 45°C

Power Consumption
1.5 kW

Display
Digital weight indicator

Filling Range
50 to 300 kg per drum

Filling Speed
Up to 80 liters per minute

Explosion Proof
Optional for hazardous areas

Accuracy
±0.1% of Full Scale

Compressed Air Requirement
6 bar (if pneumatic actuation is included)

Single Drum Filling Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
20 Pieces Per Week

Delivery Time
1 Days

Main Domestic Market
All India

About Single Drum Filling Machine

This advanced-technology Single Drum Filling Machine is designed with in-mouth filling feature to ensure no spillage of liquids. It is widely used in different sectors from paints, chemicals to oils. With modern control panel, this machine ensures swift and easy operations. Its latest-technology micro controller based design along with stainless steel valve ensures complete protection. Auto calibration feature along with highly-powerful motor guarantee high-filling efficacy. It ensures high internal count that is greater than 2, 00,000. Besides this, it comes with excellent data retention features even after power failure. Top and side rollers as well as conveyor ensure easy handling of drums.

Specification

Below bunghole filling for non foaming liquids.
Subsurface filling for foaming liquids.
Wetted part moc SS-316.
Valve size : 1.5"
PF size : 610 mm x 610 mm
Safety interlock for fool-proof operation.
Mechanical arrangement to accommodate filling of different height of drums.

Robust and Versatile Filling

Engineered for reliability, this filling machine is suitable for various industries handling liquid products. With a robust stainless steel design and compatibility for both standard and custom-sized drums, it integrates seamlessly into your production line, offering flexibility and enduring performance.

Advanced Control Systems for Precision

Equipped with a PLC control system and a digital weight indicator, users can easily monitor and set fill volumes. High accuracy of 0.1% of full scale ensures tight control over product quantity, minimizing waste and enhancing productivity.

Safe and Clean Operation

Safety interlocks and an optional explosion-proof design make this machine ideal for environments where hazardous liquids or vapors are present. The anti-drip nozzle and adjustable height contribute to spill-free and user-friendly operations.

FAQs of Single Drum Filling Machine:

Q: How does the Single Drum Filling Machine ensure accurate filling?

A: The machine uses a PLC control system with a digital weight indicator, achieving high precision with an accuracy of 0.1% of full scale. The anti-drip nozzle and controlled filling speed up to 80 liters per minute further support precise and clean fills.

Q: What types of drums are compatible with the machine?

A: It is designed for standard 200-liter drums as well as custom sizes, accommodating a broad range of industrial drum specifications. The adjustable nozzle height adds versatility for different drum heights.

Q: When should I consider the explosion-proof option?

A: The explosion-proof variant is recommended for operations involving flammable or hazardous liquids, or where the installation environment has a risk of explosion. This option enhances workplace safety in accordance with safety regulations.

Q: Where can this machine be installed and operated?

A: It is suitable for operation in factories, production facilities, or any site requiring automated drum filling. The machine runs on 220-240 V power at 50/60 Hz and functions in temperatures ranging from 5C to 45C.

Q: What is the filling process for a drum using this machine?

A: First, place the drum on the filling platform. Adjust the nozzle height as needed. The operator can then use the digital interface to set the desired fill quantity, and the PLC-controlled system will automatically execute the filling cycle with high precision.

Q: How can I benefit from using this drum filling machine?

A: By automating the filling process, the machine improves throughput up to 200 drums per day, reduces product loss due to spillage, and ensures consistent product quality with high filling accuracy, ultimately saving time and labor costs.

Q: Is compressed air required for operation?

A: Compressed air at 6 bar is only required if the machine is equipped with pneumatic actuation. The primary drive is electric, with an energy consumption of 1.5 kW.
